Undercurrent Hydroponic Systems: Maximizing Yield and Efficiency

Undercurrent hydroponic systems are gaining popularity among growers due to their efficiency and versatility. These systems utilize deep water culture (DWC) methods and are designed to deliver heavy yields with high potency. Undercurrent systems are praised for their reliability, ease of use, and ability to produce consistent results.

Understanding the key components of an undercurrent hydroponic system is essential for growers who want to set up their own system. These systems typically include a reservoir, air pump, water pump, air stones, and net pots.

The plants are suspended in the water with their roots submerged, allowing for optimal nutrient uptake and oxygenation. The water is recirculated through the system, creating a highly efficient and sustainable growing environment.

Key Takeaways:

Understanding Undercurrent Hydroponic Systems

Undercurrent Hydroponic Systems are a type of Deep Water Culture hydroponic system that uses a sub-current culture technique.

This technique involves pumping nutrient-rich water from a reservoir into the plant roots, which are suspended in a separate container filled with a growing medium. The water then drains back into the reservoir, creating a recirculating system.

The Undercurrent Hydroponic System has several advantages over other hydroponic systems. It allows for optimal nutrient absorption and superior plant growth while minimizing water usage.

The system is also easy to use and requires minimal maintenance.

Undercurrent Hydroponic Systems are available in various sizes and configurations.

Benefits of an Undercurrent Hydroponic System

Undercurrent hydroponic systems are a type of recirculating deep water culture (DWC) hydroponic system that offers several benefits for growing plants. Here are some of the advantages of using an undercurrent hydroponic system:

Improved Oxygenation

Undercurrent systems continuously oxygenate the nutrient solution by using air stones or diffusers. This high oxygen content promotes healthy root development and helps prevent root diseases, as roots receive an ample oxygen supply.

Increased Growth Rates

Plants grown in undercurrent systems often experience rapid root growth rates compared to traditional soil-based methods. This is because the plants can take up nutrients and water more efficiently, enhancing nutrient absorption and growth.

Water Efficiency

Undercurrent systems recirculate the nutrient solution, which means they use less water compared to traditional soil farming. This is particularly important in regions with water scarcity or where water conservation is a concern.

Nutrient Efficiency

Nutrient uptake is optimized in undercurrent systems, leading to reduced nutrient wastage. The constant flow of nutrient-rich water to the roots ensures that the plants have access to the nutrients they need when they need them.

Precise Control

These systems allow for precise control over the nutrient solution, pH levels, and electrical conductivity (EC). This control enables growers to tailor the growing environment to the specific needs of their plants, resulting in healthier and more vigorous growth.

Fewer Pest and Disease Issues

Since undercurrent systems are soilless, they are less susceptible to soil-borne pests and diseases. This reduces the need for chemical pesticides and herbicides, making it an eco-friendly option.

Space Efficiency

Undercurrent systems are typically designed with a low profile, making them suitable for growers with limited space. They can be set up in smaller grow rooms or even in vertical farming setups.

High Yield Potential

When properly maintained, undercurrent hydroponic systems have the potential to produce high yields of healthy, high-quality crops. This makes them popular among commercial growers.

Consistent Results

With proper monitoring and maintenance, undercurrent systems provide consistent results and can be highly reliable for growers. This predictability is essential for commercial operations.

Adaptability

Undercurrent systems can be used to grow a wide variety of crops, including vegetables, herbs, and some fruits. They are adaptable to different plant types and can be customized to suit specific crop requirements.

While undercurrent hydroponic systems offer numerous benefits, they also require careful attention to detail regarding nutrient management, pH control, and system maintenance. Growers should be prepared to invest time and effort in monitoring and adjusting the system to ensure optimal plant health and growth.

Key Components of the System

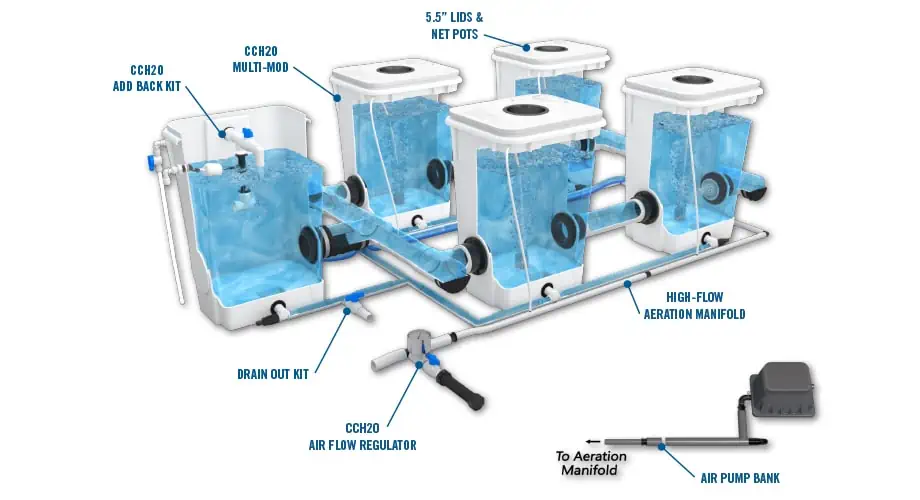

 UC-System-CutawayUndercurrent Hydroponic Systems are a popular choice for growers who want to optimize nutrient absorption and achieve superior plant growth while minimizing water usage. The key components of the system are:

The Pump

The pump is one of the most important components of the Undercurrent Hydroponic System. It is responsible for delivering nutrient-rich water to the plant roots, which is essential for healthy plant growth.

The water pump should be reliable, high-quality, and suited to the size of the system. A premium linear air pump(s) can also be used to provide additional oxygen to the plant roots.

Net Pots

Net pots are used to hold the plants in place and allow their roots to grow freely in the nutrient-rich water. They are typically made of plastic or fabric and come in various sizes to accommodate different plant types.

Net pots should be placed in the buckets or reservoir at the appropriate height to ensure that the plant roots are submerged in the water.

Reservoir

The reservoir is the container that holds the nutrient-rich water in the Undercurrent Hydroponic System. It should be made of food-grade material and be large enough to accommodate the size of the system. The reservoir should also have a lid to prevent evaporation and contamination.

Air Pump

An air pump is used to provide additional oxygen to the plant roots, which is essential for healthy growth. The air pump should be reliable and suited to the size of the system. Air hoses and bulkheads can also be used to distribute the air evenly throughout the system.

Accessories

There are various accessories that can be used to enhance the performance of the Undercurrent Hydroponic System.

Grow lights can be used to provide additional light to the plants, while water chillers or heaters can be used to maintain the temperature of the nutrient-rich water. pH meters and nutrient meters can also be used to monitor the pH and nutrient levels of the water.

Setting Up an Undercurrent System

Setting up an Undercurrent hydroponic system is a straightforward process that requires minimal effort. The system is designed to be modular, making it easy to customize and expand as needed.

Here are the steps to follow when setting up an Undercurrent system:

Step 1: System Layout Versatility

The first step in setting up an Undercurrent system is to determine the layout and size of the system. The Undercurrent system is highly versatile, allowing growers to customize the system to fit their specific needs.

The system’s modular design allows for easy expansion, making it ideal for growers who want to start small and then scale up as their needs change.

Step 2: Module Size

The next step is to choose the module size that best fits the grower’s needs. The Undercurrent system comes in various sizes, ranging from small 2-row systems to larger 12-row systems. Growers can choose the module size that fits their available space and the number of plants they want to grow.

Step 3: Control Module

The control module is the heart of the Undercurrent system. It houses the water pump, air stone, and other essential components.

The control module is designed to be easy to use and maintain, ensuring that the system runs smoothly and efficiently.

Step 4: System Volume

The Undercurrent system’s volume is an essential factor to consider when setting up the system. The system’s volume determines the number of plants that can be grown in the system and the frequency of nutrient changes.

The system’s modular design allows growers to customize the system’s volume to fit their needs.

Step 5: Modular Design

The Undercurrent system’s modular design makes it easy to customize and expand the system as needed.

The system’s modular design allows growers to add or remove modules as needed, making it ideal for growers who want to start small and then scale up as their needs change.

Step 6: Under Current®

The Under Current® is the patented circulation method used in the Undercurrent system. The Under Current® ensures that the nutrient solution is constantly circulated throughout the system, ensuring that all plants receive the same amount of nutrients.

The Under Current® is an essential component of the Undercurrent system, ensuring that the system runs smoothly and efficiently.

The Role of Nutrients and pH

In Undercurrent Hydroponic Systems, the role of nutrients and pH is crucial for the growth of plants. The nutrient solution used in the system is responsible for providing plants with the necessary nutrients they need to grow.

The pH of the nutrient solution is also important because it affects the availability and uptake of nutrients by the plants.

Maintaining the correct pH level is essential for the health of the plants. The pH level of the nutrient solution should be between 5.5 and 6.5 for most crops. If the pH level is too high or too low, it can disrupt the plants’ ability to absorb essential nutrients, leading to nutrient deficiencies or toxicities.

To maintain the correct pH level, pH adjusters can be used. pH adjusters are chemicals that can be added to the nutrient solution to raise or lower the pH level.

Common pH adjusters include phosphoric acid, potassium hydroxide, and citric acid. It is important to use pH adjusters sparingly and to follow the manufacturer’s instructions carefully.

In addition to pH, the nutrient solution’s EC (electrical conductivity) level is also important. The EC level measures the concentration of nutrients in the solution.

The ideal EC level for most crops is between 1.2 and 2.0. If the EC level is too high, it can lead to nutrient toxicities, while a low EC level can result in nutrient deficiencies.

The nutrient solution used in Undercurrent Hydroponic Systems contains all the necessary plant nutrients, including nitrogen, phosphorus, and potassium.

These nutrients are essential for plant growth and development. Other essential plant nutrients include calcium, magnesium, and sulfur.

To ensure that the plants receive all the necessary nutrients, it is important to monitor the nutrient solution regularly.

Nutrient deficiencies can be identified by observing the plants’ leaves and stems. For example, a nitrogen deficiency can cause yellowing leaves, while a phosphorus deficiency can result in stunted growth.

Efficiency and Versatility

The Undercurrent Hydroponic System is a high-performance water culture system that ensures uniform pH and EC levels throughout the entire system.

This system utilizes negative water pressure to recirculate oxygenated nutrient solution through the plant’s root zone. The Undercurrent Hydroponic System is known for its efficiency, layout versatility, and ease of use.

The Undercurrent Hydroponic System is an efficient system that recirculates nutrient solution, which makes it an excellent choice for growers who want to save water and nutrients.

The recirculating system also ensures that the plants receive a balanced nutrient solution, which leads to healthy plant growth and high yields. The system’s efficiency is due to its recirculating design, which allows for the reuse of nutrient solution, reducing the amount of waste produced.

The Undercurrent Hydroponic System is also versatile, allowing for custom plant spacing and expansion. The system’s modular design allows for easy expansion, making it an excellent choice for growers who want to start small and expand as their operation grows.

The system’s custom plant spacing allows growers to optimize their growing space, ensuring that plants have enough room to grow and receive adequate light.

The Undercurrent Hydroponic System is also reliable and easy to use. The system’s recirculating design ensures that nutrient solution is evenly distributed throughout the entire system, making it easy for growers to maintain a balanced nutrient solution.

The system’s ease of use is due to its simple design, which makes it easy for growers to set up and maintain.

Undercurrent System Varieties

under current hydroponicsUndercurrent Hydroponic Systems offer a range of different hydroponic systems that are designed to meet the specific needs of different growers.

Each system has its own unique features and benefits, making it important to choose the right one for your specific growing needs. Here are some of the most popular Undercurrent System varieties:

Under Current Solo

The Under Current Solo is a single-bucket hydroponic system that is perfect for small-scale growers with limited grow space.

It comes in 8, 13, or 35-gallon growth modules and is designed to be easy to use and maintain. The Solo is a great choice for those who are just starting out with hydroponics or for those who have limited space.

Under Current Standard

The Under Current Standard system features two rows of 8 or 13-gallon growth modules, making it ideal for medium to large-scale growers.

It is designed to be reliable and easy to use, with no timers or guesswork required. The Standard is a popular choice for commercial growers who need a system that can handle high volumes of plants.

Under Current Evolution

The Under Current Evolution system is an advanced hydroponic system that features a modular design, allowing growers to customize the system to their specific needs.

It is designed to be highly efficient, with a constant circulation of plant nutrients for optimal growth. The Evolution is a great choice for experienced growers who want to take their hydroponic setup to the next level.

Under Current Double Barrel

The Under Current Double Barrel system is a dual-bucket hydroponic system that is designed to provide maximum yields with minimal effort. It features a patented CCH2O Sub-Current Culture system that provides constant circulation of plant nutrients, reducing labor and maintenance.

The Double Barrel is a great choice for growers who want to maximize their yields without spending a lot of time on maintenance.

Under Current Pro

The Under Current Pro system is a professional-grade hydroponic system that is designed for large-scale commercial growers. It features a modular design that allows growers to customize the system to their specific needs, with up to 12 rows of 8 or 13-gallon growth modules.

The Pro is a great choice for growers who need a system that can handle high volumes of plants and deliver consistent, high-quality yields.

Under Current Boneless

The Under Current Boneless system is a unique hydroponic system that is designed to be ultra-efficient and easy to use.

It features a patented design that eliminates the need for a separate plant support structure, reducing labor and maintenance. The Boneless is a great choice for growers who want to maximize their yields while minimizing their workload.

In addition to these popular Undercurrent System varieties, there are also other systems available such as the UC16 and UCDB16XL. Each system has its own unique features and benefits, making it important to choose the right one for your specific growing needs.

Maintaining Your Undercurrent Hydroponic System

Maintaining your Undercurrent hydroponic system is crucial to ensure that your plants grow healthy and strong.

Proper maintenance will help prevent issues such as nutrient imbalances, root rot, and algae growth. Here are some tips to help you keep your system clean and functioning optimally:

Clean Your System Regularly

Keeping your system clean is essential to prevent the buildup of bacteria, algae, and other contaminants that can harm your plants. It is recommended to clean your system every 2-3 weeks or as needed.

To clean your Undercurrent hydroponic system, follow these steps:

  1. Drain the nutrient solution from your system.
  2. Remove any debris or dead plant matter from the reservoir and grow modules.
  3. Scrub the reservoir and grow modules with a mild detergent and a soft-bristled brush.
  4. Rinse the system thoroughly with clean water.
  5. Refill the reservoir with fresh nutrient solution.

Maintain Proper Temperature

Maintaining the proper temperature is crucial for the health of your plants. The ideal temperature range for hydroponic systems is between 65-80°F (18-27°C).

If the temperature in your grow room is too high, you can use cooling methods such as fans or air conditioning to bring it down. If the temperature is too low, you can use heaters or insulation to keep it within the optimal range.

Less Frequent Nutrient Change Outs

One of the benefits of Undercurrent hydroponic systems is that they require less frequent nutrient change outs compared to other types of hydroponic systems. This is because the recirculating design of the system allows for the nutrients to be continuously circulated and reused.

However, it is still important to monitor the nutrient levels and pH of your system regularly to ensure that they are within the optimal range for your plants. You can use a digital pH meter and a TDS meter to measure the nutrient levels and adjust them as needed.

Plant Growth and Health

Undercurrent Hydroponic Systems are known for their ability to promote explosive plant growth rates and maintain plant health. The system’s design ensures that plants receive sufficient aeration and nutrient uptake, which are essential for healthy plant growth.

The negative water pressure in the system’s growth modules creates a constant flow of oxygen-rich nutrient solution to the roots, promoting optimal nutrient uptake and preventing plant stress. The dissolved oxygen levels are also consistently high, ensuring that the plants have access to adequate oxygen levels.

The spacing between plants is also optimized in Undercurrent Hydroponic Systems, allowing for efficient use of space and promoting healthy plant growth. The system’s design also allows for easy maintenance and monitoring of plant health, which is essential for identifying and addressing any issues that may arise.

Cultured solutions are used in Undercurrent Hydroponic Systems, which are specifically designed to provide the necessary nutrients for plant growth. The nutrient solution is precisely controlled, ensuring that plants receive the correct balance of nutrients required for optimal growth.

Material and Size Considerations

When designing an Undercurrent Hydroponic System, there are several material and size considerations to keep in mind. These factors can impact the overall efficiency and effectiveness of the system.

One of the key materials used in Undercurrent systems is rockwool. Rockwool is a popular grow medium for hydroponic systems because it is sterile, pH neutral, and provides excellent water retention.

When using rockwool in an Undercurrent system, it is important to ensure that the plants are spaced appropriately to prevent overcrowding.

Another consideration is the size of the containers used in the system. Undercurrent systems typically use containers that range from 8 to 13 gallons in size. The size of the container will depend on the size of the plant being grown and the desired yield. Larger plants will require larger containers to accommodate their root systems.

The PVC piping used in the system is also an important consideration. The piping should be durable and able to withstand the weight of the containers and the water. It is important to ensure that the piping is properly sized to allow for adequate water flow.

When designing an Undercurrent system, it is important to consider the overall size of the system. The system should be sized appropriately for the space available and the number of plants being grown. A larger system will require more space and resources, but may also yield a higher crop output.

Purchasing Your System

When it comes to purchasing an Undercurrent hydroponic system, there are several factors to consider. First, you’ll want to determine the size of the system you need based on your growing goals and available space.

Undercurrent systems come in a variety of sizes, from single buckets to multiple rows of 8 or 13-gallon growth modules.

Once you’ve determined the size of the system you need, you can start shopping around.

One popular option is Hydrobuilder, which offers a wide selection of Undercurrent systems from Current Culture H2O. You can also shop all hydroponic systems to compare options and prices from different brands.

When purchasing your system, it’s important to consider the quality of the materials and construction. Undercurrent systems from Current Culture H2O are commercial greenhouse grade and built to last, with features like water level marks, recessed drain wells, and a smooth interior for easy cleaning.

Another important factor to consider is the type of hydroponics system you want to use. Undercurrent systems utilize deep water culture (DWC), which involves suspending plant roots in a nutrient-rich solution. This method is known for producing high-quality yields with excellent efficiency.

If you’re new to hydroponics, it may be helpful to do some research and learn more about the different types of hydroponic systems, such as nutrient film technique (NFT) and ebb and flow. However, Undercurrent systems are a great choice for both novice and experienced growers alike.

Advanced Techniques and Applications

Undercurrent Hydroponic Systems are highly efficient and flexible, making them a popular choice for growers looking to achieve awe-inspiring yields.

One of the key features of these systems is the use of a highly oxygenated nutrient circulation solution, which helps to promote healthy root growth and maximize nutrient uptake.

In addition to their use in traditional hydroponic setups, Undercurrent systems are also well-suited for water culture applications.

This technique involves suspending plants in a nutrient-rich solution, allowing their roots to absorb nutrients directly from the water. This approach can be particularly effective for growing leafy greens, herbs, and other small plants.

One of the benefits of using an Undercurrent system is its ability to support organic growing practices. By carefully controlling nutrient levels and pH, growers can create an ideal environment for their plants to thrive without the use of synthetic fertilizers or pesticides.

Another advanced technique that can be used with Undercurrent systems is the ebb and flow method. This involves periodically flooding the grow bed with nutrient solution, allowing the plants to absorb the nutrients they need before draining the excess water away.

This approach can be particularly effective for larger plants, such as tomatoes and peppers, which require more water and nutrients than smaller plants.

Frequently Asked Questions

Q: What are the advantages of using Undercurrent Hydroponic Systems over other recirculating systems?

A: Undercurrent Hydroponic Systems offer several advantages over other recirculating systems. These systems provide constant circulation of plant nutrients, which helps to increase plant growth and yield.

The use of a submersible pump ensures that the nutrient solution is always available to the roots, which reduces the risk of plant stress.

Additionally, the Undercurrent Hydroponic System is designed to be easy to use and maintain, making it an ideal choice for both novice and experienced growers.

Q: How does the Under Current RDWC compare to other DWC hydroponic systems?

A: The Under Current RDWC is a variation of the traditional deep water culture (DWC) hydroponic system. Unlike other DWC systems, the Under Current RDWC utilizes a submersible pump to circulate the nutrient solution, which helps to increase plant growth and yield.

Additionally, the Under Current RDWC is designed to be easy to use and maintain, making it an ideal choice for both novice and experienced growers.

Q: What are the key features of a commercial DWC hydroponic system?

A: A commercial DWC hydroponic system typically includes a submersible pump, a nutrient reservoir, and a series of grow buckets or trays.

The system is designed to circulate the nutrient solution continuously, which helps to increase plant growth and yield. Additionally, commercial DWC systems are typically designed to be easy to use and maintain, making them an ideal choice for both novice and experienced growers.

Q: What are some common issues to watch out for when using RDWC Hydroponic Systems?

A: One common issue to watch out for when using RDWC Hydroponic Systems is over-aeration of the nutrient solution. Over-aeration can reduce the amount of oxygen available to the roots, which can harm plant growth.

It is important to monitor the pH and nutrient levels of the solution regularly, as imbalances can also harm plant growth.

Q: What are some of the best hydroponic systems for sale that utilize recirculating water?

A: Some of the best hydroponic systems for sale that utilize recirculating water include the Under Current RDWC, the Ebb and Flow system, and the Drip Irrigation system. Each of these systems has its own unique advantages and disadvantages, so it is important to choose the system that best meets your needs.

Q: Can over-aeration of water in hydroponic systems harm plant growth?

A: Yes, over-aeration of water in hydroponic systems can harm plant growth. Over-aeration can reduce the amount of oxygen available to the roots, which can lead to reduced plant growth and yield.

It is important to monitor the aeration levels of the nutrient solution regularly to ensure that the plants are receiving the optimal amount of oxygen.
